Attributes
| Ssp Category | tube-fitting-unions-unilok |
|---|---|
| Ssp Subcategory | reducing-union-unilok |
| Part Number | issu3ru2 |
Description
Unilok Reducing Union, 3/16 Tube Fitting x 1/8 Tube Fitting, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Tube Fitting |
| Connection 1 - Size | 3/16 in |
| Connection 2 - Type | Tube Fitting |
| Connection 2 - Size | 1/8 in |
| Brand Series | Unilok |
| Shape | Straight |
| End Connections | TF x Tube Fitting |
| Production Category | 1 |
| End Connection Type | Unilok Tube End |

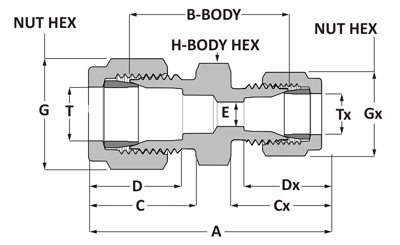

| A | 1.44 in |
| C | 0.63 in |
| D | 0.54 in |
| E | 0.09 in |
| G | 1/2 in |
| H | 7/16 in |
| T | 3/16 in |
| B | 0.92 in |
| Cx | 0.60 in |
| Dx | 0.50 in |
| Gx | 7/16 in |
| Tx | 1/8 in |
PDF Documents
Unilok Tube Fittings Catalog
Open PDF
