Attributes
| Ssp Category | tube-fitting-unions-unilok |
|---|---|
| Ssp Subcategory | union-elbow-unilok |
| Part Number | issu12ue-1 |
Description
Unilok Union Elbow, 3/4 Tube Fitting x 3/4 Tube Fitting, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Tube Fitting |
| Connection 1 - Size | 3/4 in |
| Connection 2 - Type | Tube Fitting |
| Connection 2 - Size | 3/4 in |
| Brand Series | Unilok |
| Shape | Elbow |
| End Connections | TF x Tube Fitting |
| Production Category | 1 |
| End Connection Type | Unilok Tube End |

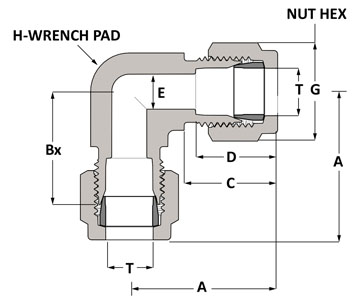

| A | 1.57 in |
| Bx | 1.17 in |
| C | 0.86 in |
| D | 0.96 in |
| E | 0.62 in |
| G | 1 1/8 in |
| H | 1 1/16 in |
| T | 3/4 in |
PDF Documents
Unilok Tube Fittings Catalog
Open PDF
