Attributes
| Ssp Category | tube-fitting-to-npt-thread-fitting-unilok |
|---|---|
| Ssp Subcategory | female-elbow-unilok |
| Part Number | issu12fe8-1 |
Description
Unilok Female Elbow, 3/4 Tube Fitting x 1/2-14 FNPT, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Tube Fitting |
| Connection 1 - Size | 3/4 in |
| Connection 2 - Type | Female National Pipe Thread |
| Connection 2 - Size | 1/2-14 |
| Brand Series | Unilok |
| Shape | Elbow |
| End Connections | TF x FNPT |
| Production Category | 1 |
| End Connection Type | Unilok Tube End by Female National Pipe Thread |

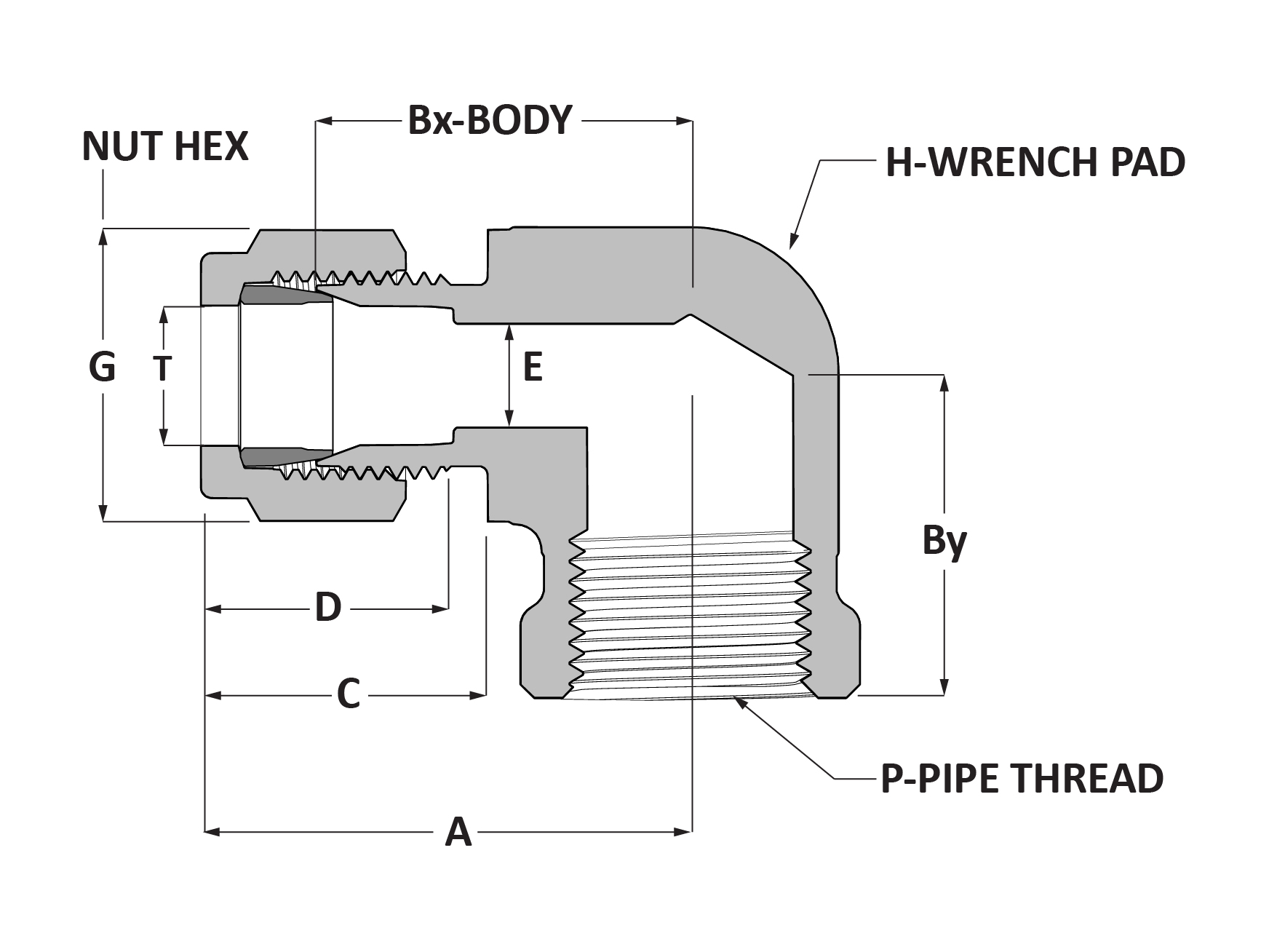

| A | 1.57 in |
| Bx | 1.17 in |
| By | 1.12 in |
| C | 0.86 in |
| D | 0.96 in |
| E | 0.62 in |
| G | 1 1/8 in |
| H | 1 1/16 in |
| P | 1/2 in |
| T | 3/4 in |
