Attributes
| Ssp Category | tube-fitting-to-npt-thread-fitting-unilok |
|---|---|
| Ssp Subcategory | female-run-tee-unilok |
| Part Number | issu12frt12 |
Description
Unilok Tube Fittings, , Female Run Tee, 3/4 Tube Fitting x 3/4-14 FNPT x 3/4 Tube Fitting, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Tube Fitting |
| Connection 1 - Size | 3/4 in |
| Connection 2 - Type | Female National Pipe Thread |
| Connection 2 - Size | 3/4-14 |
| Connection 3 - Type | Tube Fitting |
| Connection 3 - Size | 3/4 in |
| Brand Series | Unilok |
| Shape | Tee |
| End Connections | TF x FNPT x Tube Fitting |
| Production Category | 1 |
| End Connection Type | Unilok Tube End by Female National Pipe Thread |

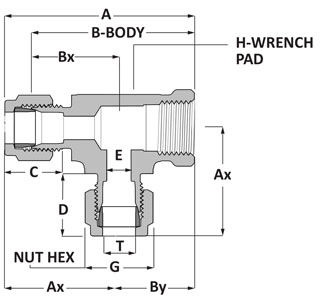

| A | 3.01 in |
| Bx | 1.36 in |
| By | 1.25 in |
| C | 0.86 in |
| D | 0.96 in |
| E | 0.62 in |
| G | 1 1/8 in |
| H | 1 3/8 in |
| P | 3/4 in |
| T | 3/4 in |
| Ax | 1.76 in |
| B | 2.61 in |
PDF Documents
Unilok Tube Fittings Catalog
Open PDF
