Part # IBU10FBT8, Female Branch Tee - Unilok

Attributes

Ssp Category	tube-fitting-to-npt-thread-fitting-unilok
Ssp Subcategory	female-branch-tee-unilok
Part Number	ibu10fbt8-1

Description

Unilok Tube Fittings, Female Branch Tee, 5/8 Tube Fitting x 5/8 Tube Fitting x 1/2-14 FNPT, Brass

Specifications

Body Material	Brass
Connection 1 - Type	Tube Fitting
Connection 1 - Size	5/8 in
Connection 2 - Type	Tube Fitting
Connection 2 - Size	5/8 in
Connection 3 - Type	Female National Pipe Thread
Connection 3 - Size	1/2-14
Brand Series	Unilok
Shape	Tee
Specialty	.
End Connections	TF x TF x FNPT
Production Category	1
End Connection Type	Unilok Tube End by Female National Pipe Thread

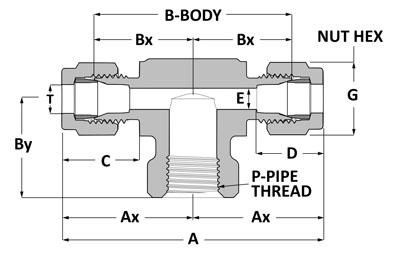

A	3.06 in
Bx	1.13 in
By	1.12 in
C	0.86 in
D	0.96 in
E	0.50 in
G	1 in
H	1 in
P	1/2 in
T	5/8 in
Ax	1.53 in
B	2.26 in

PDF Documents

Unilok Tube Fittings Catalog Open PDF
