Part # IBU4MERT2, BSPT 90° Male Elbow - Unilok

Attributes

Ssp Category	tube-fitting-to-bsp-thread-fitting-unilok
Ssp Subcategory	bspt-90--male-elbow-unilok
Part Number	ibu4mert2-1

Description

Unilok BSPT 90° Male Elbow, 1/4 Tube Fitting x 1/8 Male BSPT, Brass

Specifications

Body Material	Brass
Connection 1 - Type	Tube Fitting
Connection 1 - Size	1/4 in
Connection 2 - Type	Male BSPT
Connection 2 - Size	1/8-28
Brand Series	Unilok
Shape	Elbow
Specialty	.
End Connections	TF x Male BSPT
Production Category	4
End Connection Type	Unilok Tube End by Male British Standard Pipe Tapered

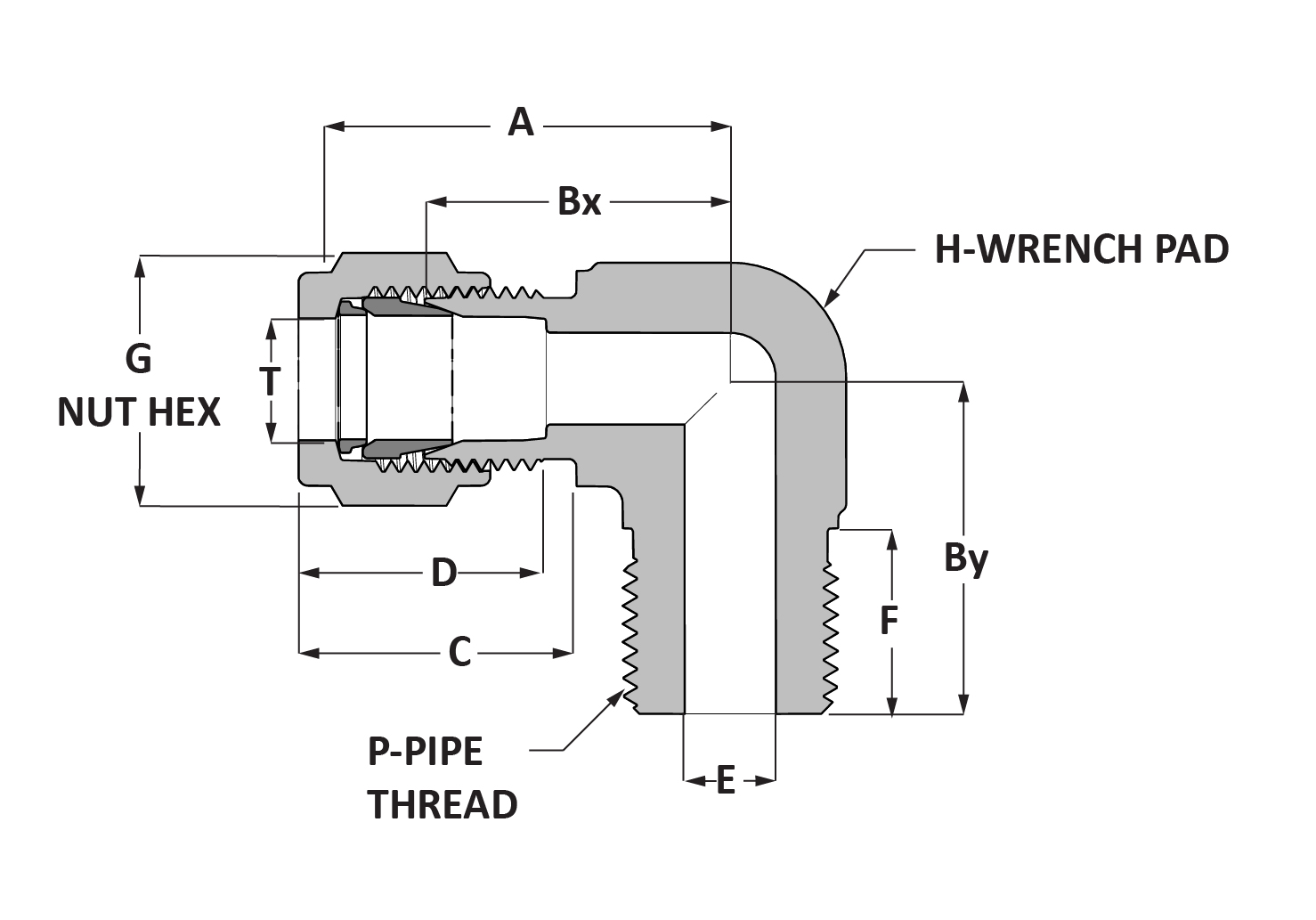

A	1.06 in
Bx	0.77 in
By	0.74 in
C	0.70 in
D	0.60 in
E	0.19 in
F	0.38 in
G	9/16 in
H	1/2 in
P	1/8 in
T	1/4 in

PDF Documents

Unilok Tube Fittings Catalog Open PDF
