Part # IBU8OMC8, O-Ring Seal Male Connector - Unilok

Attributes

Ssp Category	tube-fitting-to-o-ring-seal-fitting-unilok
Ssp Subcategory	o-ring-seal-male-connector-unilok
Part Number	ibu8omc8

Description

Unilok O-Ring Seal Male Connector, 1/2 Tube Fitting x 1/2-14 O-ring Seal Modified MNPT, Brass

Specifications

Body Material	Brass
Connection 1 - Type	Tube Fitting
Connection 1 - Size	1/2 in
Connection 2 - Type	O-ring Seal Modified MNPT
Connection 2 - Size	1/2-14
Brand Series	Unilok
Shape	Straight
O-ring Material	Nitrile Buna Rubber
AS568 O-Ring Uniform Size Number	-212
End Connections	TF x O-ring Seal Modified MNPT
Production Category	4
End Connection Type	Unilok Tube End by Short Male NPT O-ring Port

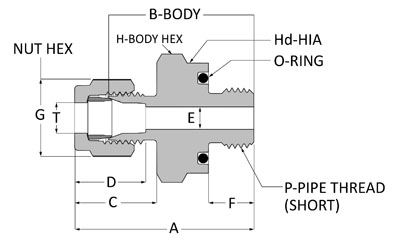

A	1.96 in
C	0.86 in
D	0.90 in
E	0.41 in
F	0.53 in
G	7/8 in
H	1 5/16 in
P	1/2 in
T	1/2 in
B	1.56 in
Hd	1.3 in
