Part # IBU8TSWE8, Tube Socket Weld Elbow - Unilok

Attributes

Ssp Category	tube-fitting-to-weld-fitting-unilok
Ssp Subcategory	tube-socket-weld-elbow-unilok
Part Number	ibu8tswe8-1

Description

Unilok Tube Socket Weld Elbow, 1/2 Tube Fitting x 1/2 Tube Socket Weld, Brass

Specifications

Body Material	Brass
Connection 1 - Type	Tube Fitting
Connection 1 - Size	1/2 in
Connection 2 - Type	Tube Socket Weld
Connection 2 - Size	1/2 in
Brand Series	Unilok
Shape	Elbow
End Connections	TF x Tube Socket Weld
Production Category	4
End Connection Type	Unilok Tube End by Tube Socket Weld

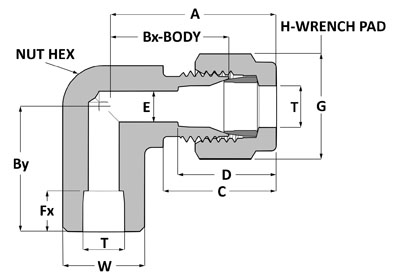

A	1.42 in
Bx	1.02 in
By	1.02 in
C	0.86 in
D	0.90 in
E	0.41 in
G	7/8 in
H	7/8 in
T	1/2 in
Fx	0.41 in
W	0.810 in

PDF Documents

Unilok Tube Fittings Catalog Open PDF
