Tube Fitting Unions Griplok · Bulkhead Reducing Union Griplok

Part # IBG6BRU4, Bulkhead Reducing Union - Griplok

Scraped SKU: ssp-ibg6bru4 2026-06-05 01:15:51

Attributes

Ssp Categorytube-fitting-unions-griplok
Ssp Subcategorybulkhead-reducing-union-griplok
Part Numberibg6bru4

Description

Griplok Bulkhead Bulkhead Reducing Union, 3/8 Tube Fitting x 1/4 Tube Fitting, Brass

Specifications

Body MaterialBrass
Connection 1 - TypeTube Fitting
Connection 1 - Size3/8 in
Connection 2 - TypeTube Fitting
Connection 2 - Size1/4 in
Brand SeriesGriplok
ShapeStraight
SpecialtyBulkhead
End ConnectionsTF x Tube Fitting
Production Category1
End Connection TypeGriplok Tube End by Tube Stub

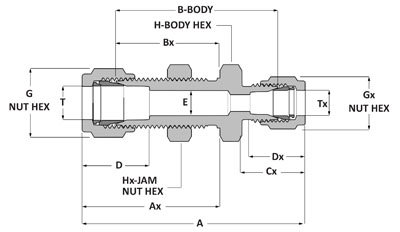

A2.44 in
Bx1.16 in
D0.71 in
E0.19 in
G11/16 in
H3/4 in
T3/8 in
Ax1.49 in
B1.81 in
Cx0.70 in
Dx0.60 in
Gx9/16 in
Hx3/4 in
Maximum Panel Thickness0.44 in
Panel Hole Drill Size37/64 in
Tx1/4 in

PDF Documents

Griplok Tube Fittings Catalog Open PDF
