Attributes
| Ssp Category | tube-fitting-unions-griplok |
|---|---|
| Ssp Subcategory | reducing-union-griplok |
| Part Number | issg8ru4 |
Description
Griplok Reducing Union, 1/2 Tube Fitting x 1/4 Tube Fitting, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Tube Fitting |
| Connection 1 - Size | 1/2 in |
| Connection 2 - Type | Tube Fitting |
| Connection 2 - Size | 1/4 in |
| Brand Series | Griplok |
| Shape | Straight |
| End Connections | TF x Tube Fitting |
| Production Category | 1 |
| End Connection Type | Griplok Tube End |

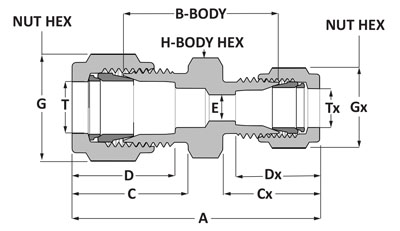

| A | 1.92 in |
| C | 0.93 in |
| D | 0.97 in |
| E | 0.19 in |
| G | 7/8 in |
| H | 13/16 in |
| T | 1/2 in |
| B | 1.16 in |
| Cx | 0.70 in |
| Dx | 0.60 in |
| Gx | 9/16 in |
| Tx | 1/4 in |
