Attributes
| Ssp Category | tube-fitting-unions-griplok |
|---|---|
| Ssp Subcategory | union-griplok |
| Part Number | ibg10u |
Description
Griplok Union, 5/8 Tube Fitting x 5/8 Tube Fitting, Brass
Specifications
| Body Material | Brass |
|---|---|
| Connection 1 - Type | Tube Fitting |
| Connection 1 - Size | 5/8 in |
| Connection 2 - Type | Tube Fitting |
| Connection 2 - Size | 5/8 in |
| Brand Series | Griplok |
| Shape | Straight |
| End Connections | TF x Tube Fitting |
| Production Category | 1 |
| End Connection Type | Griplok Tube End |

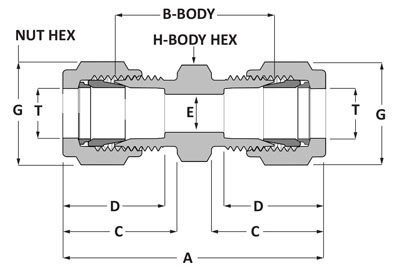

| A | 2.09 in |
| C | 0.90 in |
| D | 1.00 in |
| E | 0.50 in |
| G | 1 in |
| H | 15/16 in |
| T | 5/8 in |
| B | 1.25 in |
PDF Documents
Griplok Tube Fittings Catalog
Open PDF
