Attributes
| Ssp Category | tube-fitting-unions-griplok |
|---|---|
| Ssp Subcategory | union-cross-griplok |
| Part Number | ibg8cs |
Description
Griplok Tube Fittings, , Union Cross, 1/2 Tube Fitting x 1/2 Tube Fitting x 1/2 Tube Fitting x 1/2 Tube Fitting, Brass
Specifications
| Body Material | Brass |
|---|---|
| Connection 1 - Type | Tube Fitting |
| Connection 1 - Size | 1/2 in |
| Connection 2 - Type | Tube Fitting |
| Connection 2 - Size | 1/2 in |
| Connection 3 - Type | Tube Fitting |
| Connection 3 - Size | 1/2 in |
| Connection 4 - Type | Tube Fitting |
| Connection 4 - Size | 1/2 in |
| Brand Series | Griplok |
| Shape | Cross |
| End Connections | TF x TF x TF x TF |
| Production Category | 1 |
| End Connection Type | Griplok Tube End |

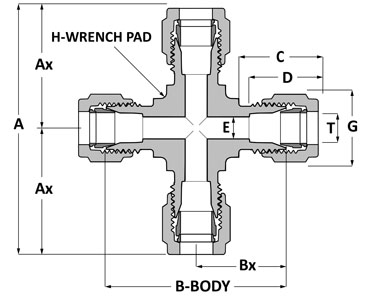

| A | 2.91 in |
| Bx | 1.02 in |
| C | 0.93 in |
| D | 0.97 in |
| E | 0.41 in |
| G | 7/8 in |
| H | 3/4 in |
| T | 1/2 in |
| Ax | 1.42 in |
| B | 2.04 in |
PDF Documents
Griplok Tube Fittings Catalog
Open PDF
