Attributes
| Ssp Category | tube-fitting-unions-griplok |
|---|---|
| Ssp Subcategory | union-elbow-griplok |
| Part Number | img8ue |
Description
Griplok Union Elbow, 1/2 Tube Fitting x 1/2 Tube Fitting, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | Tube Fitting |
| Connection 1 - Size | 1/2 in |
| Connection 2 - Type | Tube Fitting |
| Connection 2 - Size | 1/2 in |
| Brand Series | Griplok |
| Shape | Elbow |
| End Connections | TF x Tube Fitting |
| Production Category | 3 |
| End Connection Type | Griplok Tube End |

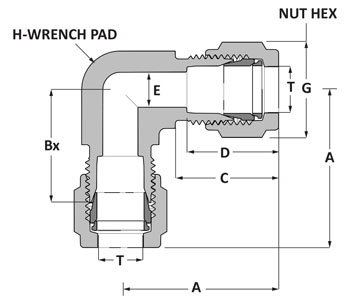

| A | 1.49 in |
| Bx | 1.02 in |
| C | 0.93 in |
| D | 0.97 in |
| E | 0.41 in |
| G | 7/8 in |
| H | 13/16 in |
| T | 1/2 in |
