Part # IBG2UT, Union Tee - Griplok

Attributes

Ssp Category	tube-fitting-unions-griplok
Ssp Subcategory	union-tee-griplok
Part Number	ibg2ut

Description

Griplok Tube Fittings, , Union Tee, 1/8 Tube Fitting x 1/8 Tube Fitting x 1/8 Tube Fitting, Brass

Specifications

Body Material	Brass
Connection 1 - Type	Tube Fitting
Connection 1 - Size	1/8 in
Connection 2 - Type	Tube Fitting
Connection 2 - Size	1/8 in
Connection 3 - Type	Tube Fitting
Connection 3 - Size	1/8 in
Brand Series	Griplok
Shape	Tee
End Connections	TF x TF x TF
Production Category	1
End Connection Type	Griplok Tube End

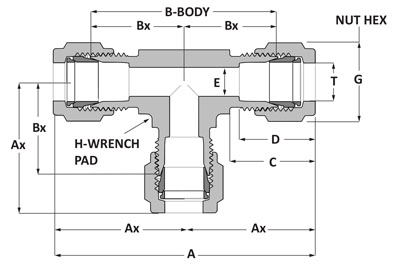

A	1.82 in
Bx	0.62 in
C	0.66 in
D	0.56 in
E	0.09 in
G	7/16 in
H	3/8 in
T	1/8 in
Ax	0.88 in
B	1.24 in
Tube OD	1/8 in
