Attributes
| Ssp Category | tube-fitting-adapters-griplok |
|---|---|
| Ssp Subcategory | bulkhead-tube-stub-adapter-griplok |
| Part Number | issg6br6-1 |
Description
Griplok Bulkhead Bulkhead Tube Stub Adapter, 3/8 Tube Fitting x 3/8 Tube Stub, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Tube Fitting |
| Connection 1 - Size | 3/8 in |
| Connection 2 - Type | Tube Stub |
| Connection 2 - Size | 3/8 in |
| Brand Series | Griplok |
| Shape | Straight |
| Specialty | Bulkhead |
| End Connections | TF x Tube Stub |
| Production Category | 1 |
| End Connection Type | Griplok Tube End by Griplok Tube Stub |

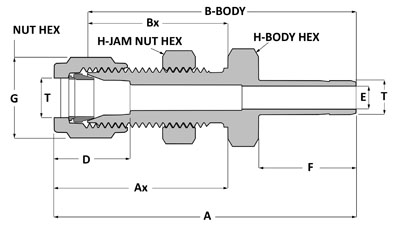

| A | 2.46 in |
| Bx | 1.16 in |
| D | 0.71 in |
| E | 0.24 in |
| F | 0.69 in |
| G | 11/16 in |
| H | 3/4 in |
| T | 3/8 in |
| Ax | 1.45 in |
| B | 2.12 in |
| Maximum Panel Thickness | 0.44 in |
| Panel Hole Drill Size | 37/64 in |
