Part # IBG6FBT4, Female Branch Tee - Griplok

Attributes

Ssp Category	tube-fitting-to-npt-thread-fitting-griplok
Ssp Subcategory	female-branch-tee-griplok
Part Number	ibg6fbt4-1

Description

Griplok Tube Fittings, , Female Branch Tee, 3/8 Tube Fitting x 3/8 Tube Fitting x 1/4-18 FNPT, Brass

Specifications

Body Material	Brass
Connection 1 - Type	Tube Fitting
Connection 1 - Size	3/8 in
Connection 2 - Type	Tube Fitting
Connection 2 - Size	3/8 in
Connection 3 - Type	Female National Pipe Thread
Connection 3 - Size	1/4-18
Brand Series	Griplok
Shape	Tee
End Connections	TF x TF x FNPT
Production Category	1
End Connection Type	Griplok Tube End by Female National Pipe Thread

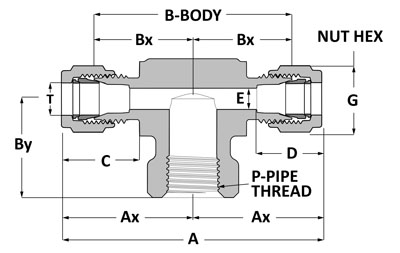

A	2.51 in
Bx	0.94 in
By	0.88 in
C	0.81 in
D	0.71 in
E	0.28 in
G	11/16 in
H	3/4 in
P	1/4 in
T	3/8 in
Ax	1.23 in
B	1.88 in

PDF Documents

Griplok Tube Fittings Catalog Open PDF
