Attributes
| Ssp Category | tube-fitting-to-npt-thread-fitting-griplok |
|---|---|
| Ssp Subcategory | male-connector-griplok |
| Part Number | ibg10mc12-1 |
Description
Griplok Male Connector, 5/8 Tube Fitting x 3/4-14 MNPT, Brass
Specifications
| Body Material | Brass |
|---|---|
| Connection 1 - Type | Tube Fitting |
| Connection 1 - Size | 5/8 in |
| Connection 2 - Type | Male National Pipe Thread |
| Connection 2 - Size | 3/4-14 |
| Brand Series | Griplok |
| Shape | Straight |
| End Connections | TF x MNPT |
| Production Category | 1 |
| End Connection Type | Griplok Tube End by Male National Pipe Thread |

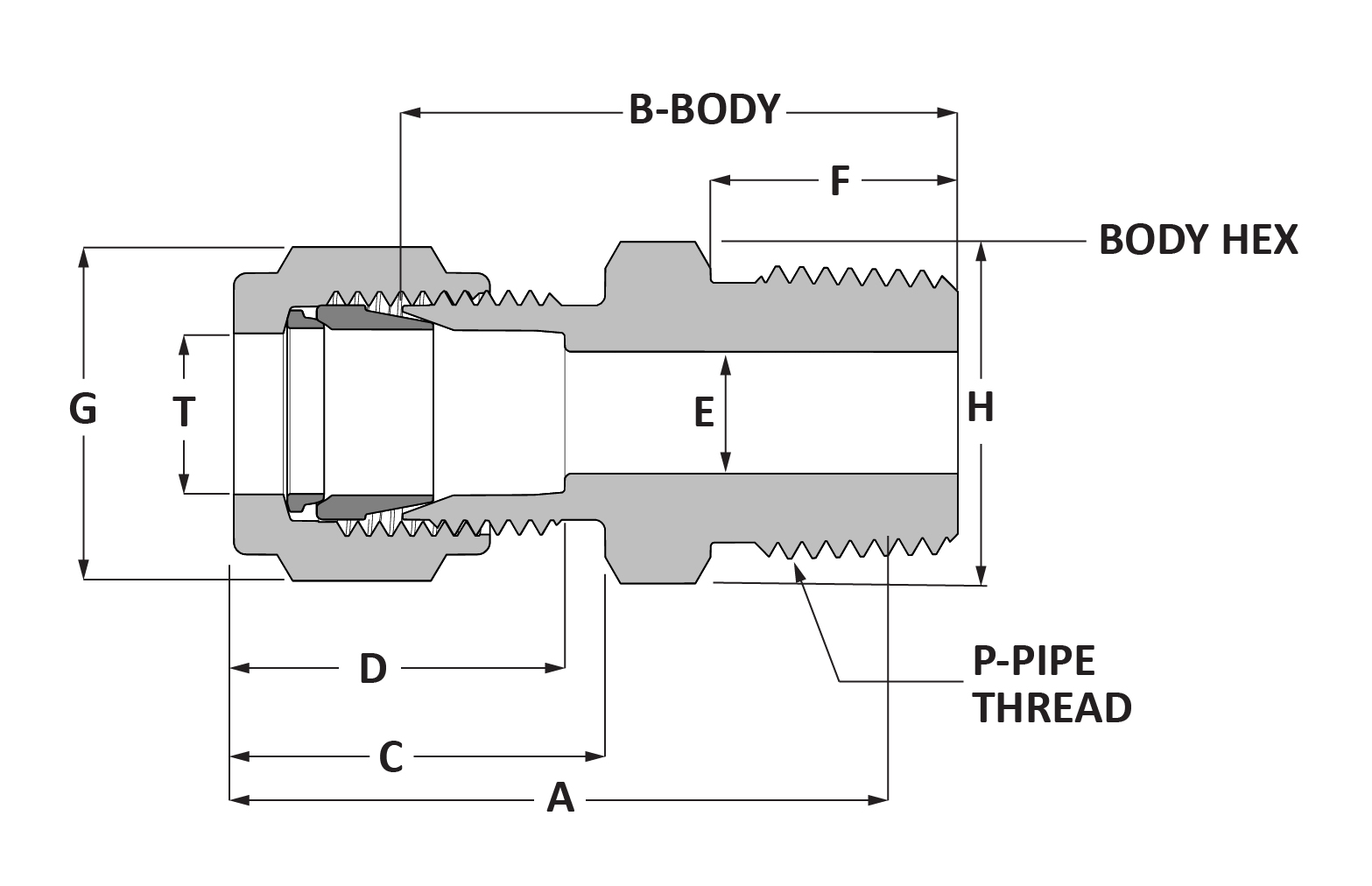

| A | 2.03 in |
| C | 0.90 in |
| D | 1.00 in |
| E | 0.50 in |
| G | 1 in |
| H | 1 1/16 in |
| P | 3/4 in |
| T | 5/8 in |
| B | 1.59 in |
| F Minimum | 0.75 in |
