Part # IBG4OMC4, O-Ring Seal Male Connector - Griplok

Attributes

Ssp Category	tube-fitting-to-o-ring-seal-fitting-griplok
Ssp Subcategory	o-ring-seal-male-connector-griplok
Part Number	ibg4omc4-1

Description

Griplok O-Ring Seal Male Connector, 1/4 Tube Fitting x 1/4-18 O-ring Seal Modified MNPT, Brass

Specifications

Body Material	Brass
Connection 1 - Type	Tube Fitting
Connection 1 - Size	1/4 in
Connection 2 - Type	O-ring Seal Modified MNPT
Connection 2 - Size	1/4-18
Brand Series	Griplok
Shape	Straight
O-ring Material	Nitrile Buna Rubber
AS568 O-Ring Uniform Size Number	-113
End Connections	TF x O-ring Seal Modified MNPT
Production Category	1
End Connection Type	Griplok Tube End by Short Male NPT O-ring Port

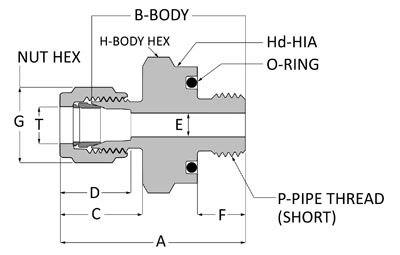

A	1.55 in
C	0.74 in
D	0.64 in
E	0.19 in
F	0.38 in
G	9/16 in
H	15/16 in
P	1/4 in
T	1/4 in
B	1.22 in
Hd	0.93 in

PDF Documents

Griplok Tube Fittings Catalog Open PDF
