Tube Fitting To Npt Thread Fitting Duolok · Bulkhead Female Connector Duolok

Part # IHCD2BFC2, Bulkhead Female Connector - Duolok

Scraped SKU: ssp-ihcd2bfc2-1 2026-06-05 01:12:36

Attributes

Ssp Categorytube-fitting-to-npt-thread-fitting-duolok
Ssp Subcategorybulkhead-female-connector-duolok
Part Numberihcd2bfc2-1

Description

Duolok Bulkhead Bulkhead Female Connector, 1/8 Tube Fitting x 1/8-27 FNPT, C-276

Specifications

Body MaterialAlloy C-276
Connection 1 - TypeTube Fitting
Connection 1 - Size1/8 in
Connection 2 - TypeFemale National Pipe Thread
Connection 2 - Size1/8-27
Brand SeriesDuolok
ShapeStraight
SpecialtyBulkhead
End ConnectionsTF x FNPT
Production Category4
End Connection TypeDuolok Tube End by Female National Pipe Thread

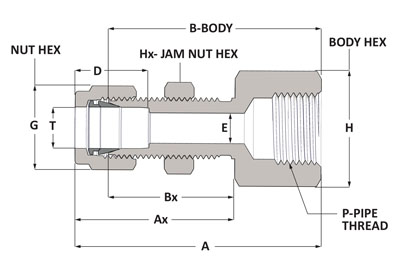

A1.76 in
Bx0.97 in
D0.50 in
E0.09 in
G7/16 in
H9/16 in
P1/8 in
T1/8 in
Ax1.23 in
B1.50 in
Hx1/2 in
Maximum Panel Thickness0.50 in
Panel Hole Drill Size21/64 in
