Part # ISSG12MPWE12, Male Pipe Weld Elbow - Griplok

Attributes

Ssp Category	tube-fitting-to-weld-fitting-griplok
Ssp Subcategory	male-pipe-weld-elbow-griplok
Part Number	issg12mpwe12-1

Description

Griplok Male Pipe Weld Elbow, 3/4 Tube Fitting x 3/4 Pipe Stub, 316 SS

Specifications

Body Material	316 SS
Connection 1 - Type	Tube Fitting
Connection 1 - Size	3/4 in
Connection 2 - Type	Pipe Stub
Connection 2 - Size	3/4 in
Brand Series	Griplok
Shape	Elbow
End Connections	TF x Pipe Stub
Production Category	1
End Connection Type	Griplok Tube End by Pipe Stub

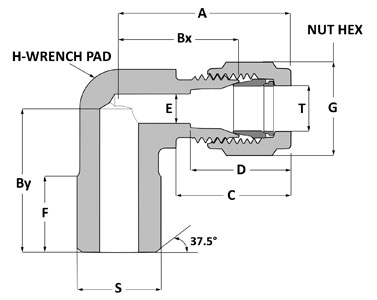

A	1.61 in
Bx	1.17 in
By	1.45 in
C	0.90 in
D	1.00 in
E	0.62 in
F	0.75 in
G	1 1/8 in
H	1 1/16 in
T	3/4 in
S	1.050 in

PDF Documents

Griplok Tube Fittings Catalog Open PDF
