Part # ISSG12TSWU12, Tube Socket Weld Union - Griplok

Attributes

Ssp Category	tube-fitting-to-weld-fitting-griplok
Ssp Subcategory	tube-socket-weld-union-griplok
Part Number	issg12tswu12-1

Description

Griplok Tube Socket Weld Adapter, 3/4 Tube Fitting x 3/4 Tube Socket Weld, 316 SS

Specifications

Body Material	316 SS
Connection 1 - Type	Tube Fitting
Connection 1 - Size	3/4 in
Connection 2 - Type	Tube Socket Weld
Connection 2 - Size	3/4 in
Brand Series	Griplok
Shape	Straight
End Connections	TF x Tube Socket Weld
Production Category	1
End Connection Type	Griplok Tube End by Tube Socket Weld

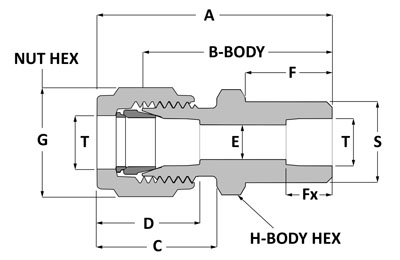

A	1.75 in
C	0.90 in
D	1.00 in
E	0.62 in
F	0.47 in
G	1 1/8 in
H	1 1/16 in
T	3/4 in
B	1.31 in
Fx	0.50 in
S	1.05 in
