Part # ISSG4ANBU4, AN Bulkhead Union - Griplok

Attributes

Ssp Category	tube-fitting-to-an-fitting-griplok
Ssp Subcategory	an-bulkhead-union-griplok
Part Number	issg4anbu4-1

Description

Griplok Bulkhead AN Bulkhead Union, 1/4 Tube Fitting x 1/4 Male AN, 316 SS

Specifications

Body Material	316 SS
Connection 1 - Type	Tube Fitting
Connection 1 - Size	1/4 in
Connection 2 - Type	Male SAE 37° Flared
Connection 2 - Size	1/4 in
Brand Series	Griplok
Shape	Straight
Specialty	Bulkhead
AN Tube Flare Size	1/4
End Connections	TF x Male AN
Production Category	1
End Connection Type	Griplok Tube End by Male SAE 37° Flare

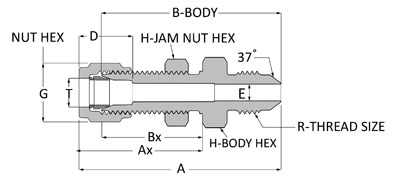

A	2.16 in
Bx	1.03 in
D	0.64 in
E	0.17 in
G	9/16 in
H	5/8 in
T	1/4 in
Ax	1.32 in
B	1.83 in
Maximum Panel Thickness	0.40 in
Panel Hole Drill Size	29/64 in
R	7/16-20 UNJF-3

PDF Documents

Griplok Tube Fittings Catalog Open PDF
