Attributes
| Ssp Category | tube-fitting-to-an-fitting-griplok |
|---|---|
| Ssp Subcategory | an-union---griplok |
| Part Number | issg2anu2-1 |
Description
Griplok AN Union, 1/8 Tube Fitting x 1/8 Male AN, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Tube Fitting |
| Connection 1 - Size | 1/8 in |
| Connection 2 - Type | Male SAE 37° Flared |
| Connection 2 - Size | 1/8 in |
| Brand Series | Griplok |
| Shape | Straight |
| AN Tube Flare Size | 1/8 |
| End Connections | TF x Male AN |
| Production Category | 1 |
| End Connection Type | Griplok Tube End by Male SAE 37° Flare |

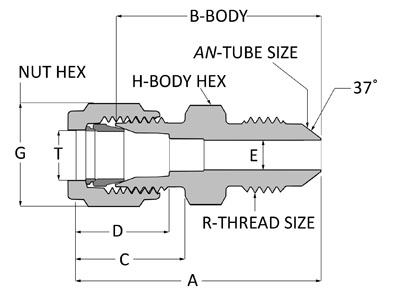

| A | 1.33 in |
| C | 0.66 in |
| D | 0.56 in |
| E | 0.06 in |
| G | 7/16 in |
| H | 7/16 in |
| T | 1/8 in |
| B | 1.01 in |
| R | 5/16-24 UNJF-3 |
