Attributes
| Ssp Category | tube-fitting-to-an-fitting-griplok |
|---|---|
| Ssp Subcategory | female-an-connectors-griplok |
| Part Number | issg2anf2-1 |
Description
Griplok Female AN Connectors, 1/8 Tube Fitting x 1/8 Female AN, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Tube Stub |
| Connection 1 - Size | 1/8 in |
| Connection 2 - Type | Female SAE 37° Swivel |
| Connection 2 - Size | 1/8 in |
| Brand Series | Griplok |
| Shape | Straight |
| AN Tube Flare Size | 1/8 |
| End Connections | TF x Female AN |
| Production Category | 1 |
| End Connection Type | Griplok Tube Fitting Swivel by Female SAE 37° Flare Swivel |

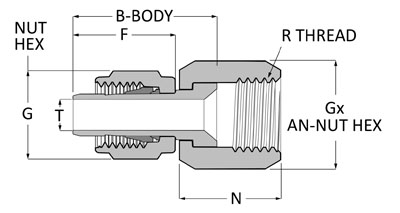

| F | 0.53 in |
| G | 7/16 in |
| T | 1/8 in |
| B | 0.73 in |
| Gx | 3/8 in |
| N | 0.54 in |
| R | 5/16-24 UNJF-3 |
PDF Documents
Griplok Tube Fittings Catalog
Open PDF
