Part # J16ME, 90° Male Elbow - SAE 37° Flared

Attributes

Ssp Category	90--elbow-sae-37--flared
Ssp Subcategory	male-elbow-sae-37--flared
Part Number	j16me-46

Description

SAE 37° Flared Male Elbow, 1 Male SAE 37° Flared x 1-11 1/2 MNPT, 316 SS

Specifications

Body Material	316 SS
Connection 1 - Type	Male SAE 37° Flared
Connection 1 - Size	1 in
Connection 2 - Type	Male National Pipe Thread
Connection 2 - Size	1-11 1/2
Brand Series	SAE 37° Flared
Shape	Elbow
Tube OD	1 in
End Connections	Male SAE 37° Flared x MNPT
Production Category	1
End Connection Type	Male SAE 37° Flare by Male National Pipe Thread

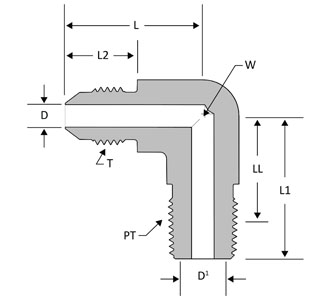

D	0.84 in
T	1 5/16-12
D1	0.94 in
L	1.81 in
L1	1.97 in
L2	0.90 in
LL	1.40 in
PT	1-11 1/2
W Wrench Flat	1 5/16 in
