Attributes
| Ssp Category | tube-fitting-to-npt-thread-fitting-duolok |
|---|---|
| Ssp Subcategory | female-elbow-duolok |
| Part Number | issdm6fe4 |
Description
Duolok Female Elbow, 316 SS, 6 mm Tube Fitting x 1/4 in FNPT
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Tube Fitting |
| Connection 1 - Size | 6 mm |
| Connection 2 - Type | Female National Pipe Thread |
| Connection 2 - Size | 1/4-18 |
| Brand Series | Duolok |
| Shape | Elbow |
| End Connections | TF x FNPT |
| Production Category | 1 |
| End Connection Type | Duolok Tube End by Female National Pipe Thread |

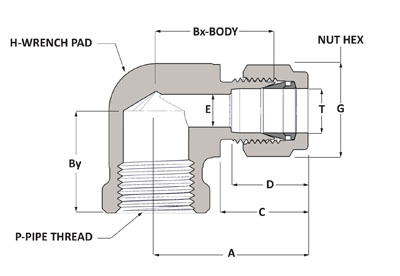

| A | 29.8 mm |
| Bx | 22.3 mm |
| By | 22.3 mm |
| C | 17.7 mm |
| D | 15.3 mm |
| E | 4.8 mm |
| G | 14 mm |
| H | 17 mm |
| P | 1/4 in |
| T | 6 mm |
