Part # J3GE, 90° SAE Thread Elbow - SAE 37° Flared

Attributes

Ssp Category	90--elbow-sae-37--flared
Ssp Subcategory	sae-thread-elbow-sae-37--flared
Part Number	j3ge-1

Description

SAE 37° Flared SAE Thread Elbow, 3/16 Male SAE 37° Flared x 3/8-24 Male SAE, 316 SS

Specifications

Body Material	316 SS
Connection 1 - Type	Male SAE 37° Flared
Connection 1 - Size	3/16 in
Connection 2 - Type	Male SAE Straight Thread
Connection 2 - Size	3/16 in
Brand Series	SAE 37° Flared
Shape	Elbow
Tube OD	3/16 in
End Connections	Male SAE 37° Flared x Male SAE
Production Category	1
End Connection Type	Male SAE 37° Flare by Male SAE Straight Thread

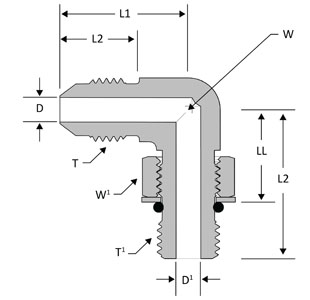

D	0.13 in
T	3/8-24
D1	0.13 in
L	0.83 in
L1	0.46 in
L2	0.94 in
LL	0.61 in
T1	3/8-24
W Wrench Flat	7/16 in
W1 Hex	1/2 in

PDF Documents

SSP Industrial Fittings Catalog Open PDF
