Attributes
| Ssp Category | 90--elbow-sae-37--flared |
|---|---|
| Ssp Subcategory | long-straight-thread-elbow-sae-37--flared |
| Part Number | j4lge-m-1 |
Description
SAE 37° Flared Long Straight Thread Elbow, 1/4 Male SAE 37° Flared x 7/16-20 Male SAE, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | Male SAE 37° Flared |
| Connection 1 - Size | 1/4 in |
| Connection 2 - Type | Male SAE Straight Thread |
| Connection 2 - Size | 1/4 in |
| Brand Series | SAE 37° Flared |
| Shape | Elbow |
| Tube OD | 1/4 in |
| End Connections | Male SAE 37° Flared x Male SAE |
| Production Category | 4 |
| End Connection Type | Male SAE 37° Flare by Male SAE Straight Thread |

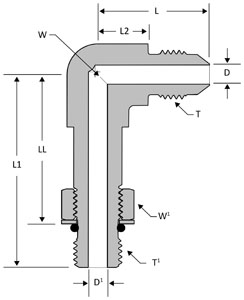

| D | 0.17 in |
| T | 7/16-20 |
| D1 | 0.17 in |
| L | 0.89 in |
| L1 | 1.73 in |
| L2 | 0.54 in |
| LL | 1.34 in |
| T1 | 7/16-20 |
| W Wrench Flat | 7/16 in |
| W1 Hex | 9/16 in |
