Part # J8-8GE-BSPP, 90° BSPP Elbow - SAE 37° Flared

Attributes

Ssp Category	90--elbow-sae-37--flared
Ssp Subcategory	bspp-elbow-sae-37--flared
Part Number	j8-6ge

Description

SAE 37° Flared Fittings 90° Elbow, 1/2 in Male SAE 37° Flared x 1/2-14 Male BSPP 316 SS

Specifications

Body Material	316 SS
Connection 1 - Type	Male SAE 37° Flared
Connection 1 - Size	1/2 in
Connection 2 - Type	Male BSPP
Connection 2 - Size	1/2-14
Brand Series	SAE 37° Flared
Shape	Elbow
Tube OD	1/2 in
End Connections	Male SAE 37° Flared x Male BSPP
Production Category	3
End Connection Type	Male SAE 37° Flare by Male British Standard Pipe Parallel

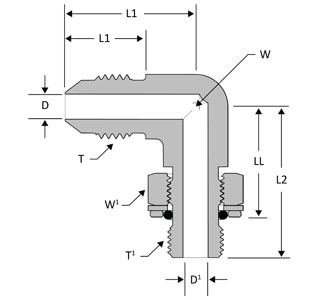

D	0.39 in
D1	0.39 in
L	1.33 in
L1	0.66 in
L2	1.69 in
LL	1.18 in
T Thread	3/4-16
T1	1/2-14
W Wrench Flat	7/8 in
W1 Hex	1 1/16 in
