Part # J10SE, 90° Swivel Nut Elbow - SAE 37° Flared

Attributes

Ssp Category	90--elbow-sae-37--flared
Ssp Subcategory	swivel-nut-elbow-sae-37--flared
Part Number	j10se-1

Description

SAE 37° Flared Swivel Nut Elbow, 5/8 Male SAE 37° Flared x 5/8 SAE 37° Flared Swivel, 316 SS

Specifications

Body Material	316 SS
Connection 1 - Type	Male SAE 37° Flared
Connection 1 - Size	5/8 in
Connection 2 - Type	Female SAE 37° Swivel
Connection 2 - Size	5/8 in
Brand Series	SAE 37° Flared
Shape	Elbow
Tube OD	5/8 in
End Connections	Male SAE 37° Flared x SAE 37° Flared Swivel
Production Category	1
End Connection Type	Male SAE 37° Flare by Female SAE 37° Flare Swivel

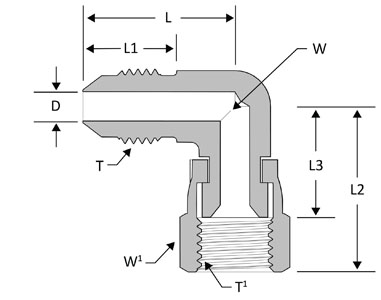

D	0.48 in
T	7/8-14
L	1.45 in
L1	0.74 in
L2	1.62 in
L3	1.12 in
T1	7/8-14
W Wrench Flat	7/8 in
W1 Hex	1 in
