Part # JS2ME-M, 90° Swivel Nut Male Elbow - SAE 37° Flared

Attributes

Ssp Category	90--elbow-sae-37--flared
Ssp Subcategory	swivel-nut-male-elbow-sae-37--flared
Part Number	js2me-m

Description

SAE 37° Flared Swivel Nut Male Elbow, 1/8 SAE 37° Flared Swivel x 1/8-27 MNPT, Alloy 400

Specifications

Body Material	Alloy 400
Connection 1 - Type	Female SAE 37° Swivel
Connection 1 - Size	1/8 in
Connection 2 - Type	Male National Pipe Thread
Connection 2 - Size	1/8-27
Brand Series	SAE 37° Flared
Shape	Elbow
Tube OD	1/8 in
End Connections	SAE 37° Flared Swivel x MNPT
Production Category	4
End Connection Type	Female SAE 37° Flare Swivel by Male National Pipe Thread

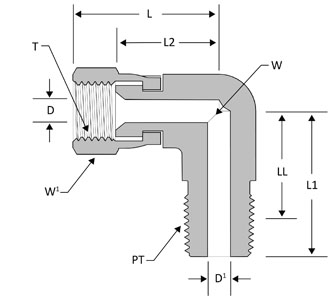

D	0.06 in
T	5/16-24
D1	0.19 in
L	0.97 in
L1	0.72 in
L2	0.66 in
LL	0.48 in
PT	1/8-27
W Wrench Flat	7/16 in
W1 Hex	7/16 in
