Attributes
| Ssp Category | 90--elbow-sae-37--flared |
|---|---|
| Ssp Subcategory | swivel-nut-straight-thread-elbow-sae-37--flared |
| Part Number | js3ge-m-1 |
Description
SAE 37° Flared Swivel Nut Straight Thread Elbow, 3/16 SAE 37° Flared Swivel x 3/8-24 Male SAE, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | Female SAE 37° Swivel |
| Connection 1 - Size | 3/16 in |
| Connection 2 - Type | Male SAE Straight Thread |
| Connection 2 - Size | 3/16 in |
| Brand Series | SAE 37° Flared |
| Shape | Elbow |
| Tube OD | 3/16 in |
| End Connections | SAE 37° Flared Swivel x Male SAE |
| Production Category | 4 |
| End Connection Type | Female SAE 37° Flare Swivel by Male SAE Straight Thread |

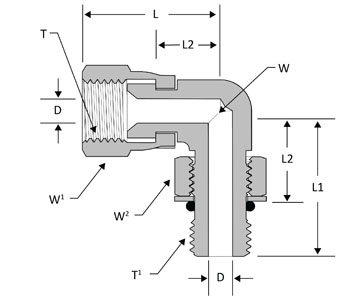

| D | 0.13 in |
| T | 3/8-24 |
| L | 1.00 in |
| L1 | 0.94 in |
| L2 | 0.67 in |
| LL | 0.61 in |
| T1 | 3/8-24 |
| W Wrench Flat | 7/16 in |
| W1 Hex | 1/2 in |
| W2 Hex | 1/2 in |
