Part # AJ12LME, 90° Long Male Elbow - SAE 37° Flared

Attributes

Ssp Category	90--elbow-sae-37--flared
Ssp Subcategory	90-long-male-elbow-assembly-sae-37-flared-1
Part Number	aj12lme

Description

SAE 37° Flared Long Male Elbow Assembly, 3/4 Male SAE 37° Flared x 3/4-14 MNPT, 316 SS

Specifications

Body Material	316 SS
Connection 1 - Type	Male SAE 37° Flared
Connection 1 - Size	3/4 in
Connection 2 - Type	Male National Pipe Thread
Connection 2 - Size	3/4-14
Brand Series	SAE 37° Flared
Shape	Elbow
Tube OD	3/4 in
End Connections	Male SAE 37° Flared x MNPT
Production Category	4
End Connection Type	Male SAE 37° Flare by Male National Pipe Thread

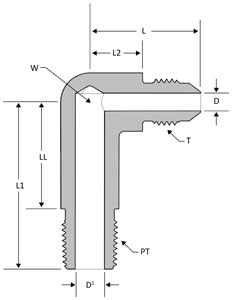

D	0.61 in
T	1 1/16-12
D1	0.72 in
L	1.66 in
L1	2.44 in
L2	0.85 in
LL	1.96 in
PT	3/4-14
W Wrench Flat	1 1/16 in
