Part # J10TTF-M, Female Branch Tee - SAE 37° Flared

Attributes

Ssp Category	tee-sae-37--flared
Ssp Subcategory	female-branch-tee-sae-37--flared
Part Number	j10ttf-m-1

Description

SAE 37° Flared Flared Fittings, , Female Branch Tee, 5/8 Male SAE 37° Flared x 5/8 Male SAE 37° Flared x 1/2-14 FNPT, Alloy 400

Specifications

Body Material	Alloy 400
Connection 1 - Type	Male SAE 37° Flared
Connection 1 - Size	5/8 in
Connection 2 - Type	Male SAE 37° Flared
Connection 2 - Size	5/8 in
Connection 3 - Type	Female National Pipe Thread
Connection 3 - Size	1/2-14
Brand Series	SAE 37° Flared
Shape	Tee
Tube OD	5/8 in
End Connections	Male SAE 37° Flared x Male SAE 37° Flared x FNPT
Production Category	4
End Connection Type	Male SAE 37° Flare by Female National Pipe Thread

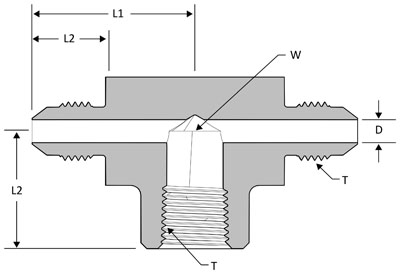

D	0.48 in
L	1.64 in
L1	0.74 in
L2	1.23 in
PT	1/2-14
T Thread	7/8-14
W Wrench Flat	1 1/16 in
