Attributes
| Ssp Category | tee-sae-37--flared |
|---|---|
| Ssp Subcategory | straight-thread-branch-tee-sae-37--flared |
| Part Number | j2gbt-1 |
Description
SAE 37° Flared Flared Fittings, , Straight Thread Branch Tee, 1/8 Male SAE 37° Flared x 1/8 Male SAE 37° Flared x 5/16-24 Male SAE, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Male SAE 37° Flared |
| Connection 1 - Size | 1/8 in |
| Connection 2 - Type | Male SAE 37° Flared |
| Connection 2 - Size | 1/8 in |
| Connection 3 - Type | Male SAE Straight Thread |
| Connection 3 - Size | 1/8 in |
| Brand Series | SAE 37° Flared |
| Shape | Tee |
| Tube OD | 1/8 in |
| End Connections | Male SAE 37° Flared x Male SAE 37° Flared x Male SAE |
| Production Category | 4 |
| End Connection Type | Male SAE 37° Flare by Male SAE Straight Thread |

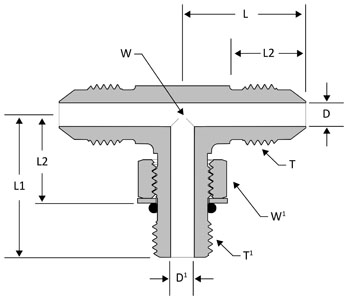

| D | 0.06 in |
| D1 | 0.06 in |
| L | 0.77 in |
| L1 | 0.94 in |
| L2 | 0.43 in |
| LL | 0.63 in |
| T Thread | 5/16-24 |
| T1 | 5/16-24 |
| W Wrench Flat | 7/16 in |
| W1 Hex | 7/16 in |
