Part # JS20U-M, Swivel Nut Union - SAE 37° Flared

Scraped SKU: ssp-js20u-m 2026-06-05 01:18:42

Attributes

Ssp Categoryswivel-nut-fittings-sae-37-flared
Ssp Subcategoryswivel-nut-union-sae-37--flared
Part Numberjs20u-m

Description

SAE 37° Flared Swivel Nut Union, 1-1/4 SAE 37° Flared Swivel x 1-1/4 SAE 37° Flared Swivel, Alloy 400

Specifications

Body MaterialAlloy 400
Connection 1 - TypeFemale SAE 37° Swivel
Connection 1 - Size1 1/4 in
Connection 2 - TypeFemale SAE 37° Swivel
Connection 2 - Size1 1/4 in
Brand SeriesSAE 37° Flared
ShapeStraight
Tube OD1 1/4 in
End ConnectionsSAE 37° Flared Swivel x SAE 37° Flared Swivel
Production Category4
End Connection TypeFemale SAE 37° Flare Swivel

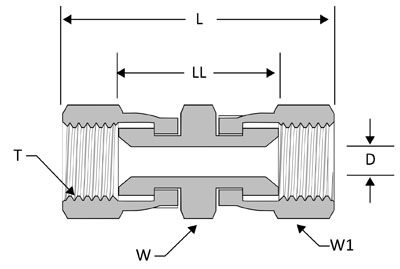

D1.08 in
T1 5/8-12
L3.02 in
LL1.77 in
W Hex2 in
W1 Hex2 in
