Attributes
| Ssp Category | connectors |
|---|---|
| Ssp Subcategory | sae-long-straight-thread-connector-sae-37-flared |
| Part Number | j20lgc-b-1-1 |
Description
SAE 37° Flared Long Straight Thread Connector, 1 1/4 Male SAE 37° Flared x 1 5/8-12 Male SAE, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | Male SAE 37° Flared |
| Connection 1 - Size | 1 1/4 in |
| Connection 2 - Type | Male SAE Straight Thread |
| Connection 2 - Size | 1 1/4 in |
| Brand Series | SAE 37° Flared |
| Shape | Straight |
| Tube OD | 1 1/4 in |
| End Connections | Male SAE 37° Flared x Male SAE |
| Production Category | 4 |
| End Connection Type | Male SAE 37° Flare by Male SAE Straight Thread |

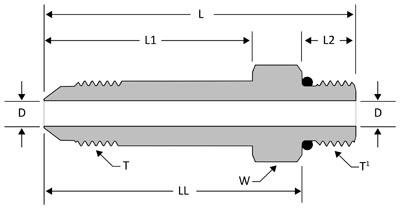

| D | 1.08 in |
| L | 4.69 in |
| L1 | 3.47 in |
| L2 | 0.59 in |
| LL | 4.10 in |
| T Thread | 1 5/8-12 |
| T1 | 1 5/8-12 |
| W Hex | 1 7/8 in |
