Attributes
| Ssp Category | swivel-nut-fittings-sae-37-flared |
|---|---|
| Ssp Subcategory | swivel-nut-male-connector-sae-37--flared |
| Part Number | js8-8c-m |
Description
SAE 37° Flared Swivel Nut Male Connector, 1/2 SAE 37° Flared Swivel x 1/2-14 MNPT, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | Female SAE 37° Swivel |
| Connection 1 - Size | 1/2 in |
| Connection 2 - Type | Male National Pipe Thread |
| Connection 2 - Size | 1/2-14 |
| Brand Series | SAE 37° Flared |
| Shape | Straight |
| Tube OD | 1/2 in |
| End Connections | SAE 37° Flared Swivel x MNPT |
| Production Category | 4 |
| End Connection Type | Female SAE 37° Flare Swivel by Male National Pipe Thread |

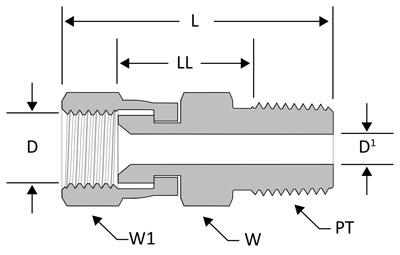

| D | 0.39 in |
| D1 | 0.39 in |
| L | 2.02 in |
| LL | 1.14 in |
| PT | 1/2-14 |
| T1 | 3/4-16 |
| W Hex | 7/8 in |
| W1 Hex | 7/8 in |
